RK3568打包导出根文件系统rootfs

创始人

2025-05-28 08:01:48

根文件系统

rootfs就是根文件系统的意思，一个可以使用的基于linux内核的系统包括引导程序uboot, linux内核固件（含设备树），rootfs根文件系统。比如ubuntu系统就是一个根文件系统，文件系统中存放着整个linux系统相关的功能软件功能的文件。如下图就是ubuntu 20.04.5的根文件系统，可以看出就是各种各样的文件。本文介绍的就是在一个已经安装各种应用软件的ubuntu系统中把根文件系统导出来，用于烧写到新的设备中去。

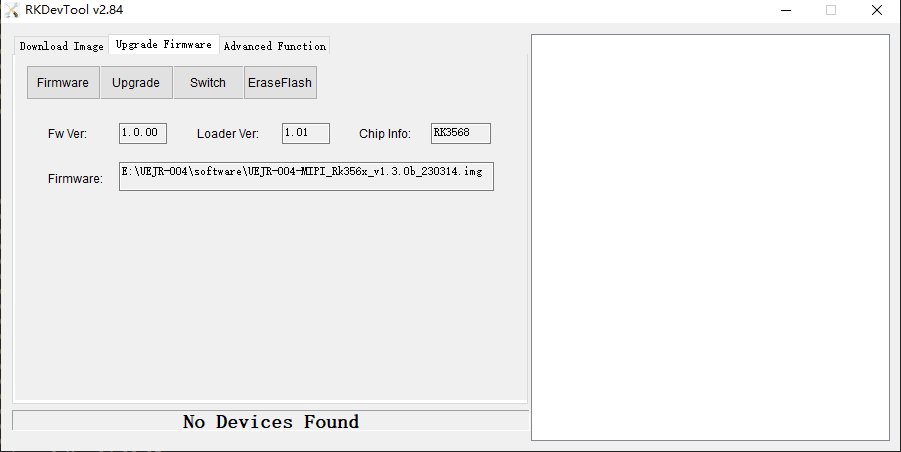

RK3568系列芯片使用的是RKDevTool软件来烧写映像文件，其中包括根文件系统映像，生成烧写映像文件只需要在SDK下使用build.sh来编译生成即可。

2. img文件

img(映像)文件就是以.img为结尾的文件，我之前的理解这个img文件可能是一种特殊的格式的文件，与普通文件并无区别，后来经过我深入的学习，才知道img文件的作用就是一个磁盘分区，分区内放一些文件，因此严格来说它不是一个文件，是一个分区。通过后面的生成img文件的过程你就理解了，它实际是一个分区。

3. 导出根文件系统rootfs

在一个能正常运行的ubuntu系统上，并且已经安装好要使用的应用软件，导出时可以连应用软件一起导出。以下在RK3568 ubuntu 20.04系统上操作。

在设备的 Ubuntu 环境下，安装 fireflydev：

sudo apt update

sudo apt install fireflydev

安装 fireflydev 后，就能使用 ff_export_rootfs 脚本导出根文件系统

建议使用容量较大的移动硬盘，一般8G以上最好，我这里使用的是16G的SD卡，注意SD卡要格式化成EXT4文件系统，格式化SD卡时，先把SD卡卸载。

sudo mkfs.ext4 /dev/mmcblk1 SD卡识别成mmcblk1磁盘分区

导出工具会执行 apt clean 等操作以减小文件系统大小

将根文件系统导出，例如导出到 /media/firefly/fe43143b-6945-4081-aa14-335e15f6cc60/，此目录是SD卡挂载后的目录（需要等待一定时间，大约10分钟）：

执行命令 ff_export_rootfs /media/firefly/fe43143b-6945-4081-aa14-335e15f6cc60，导出根文件系统

导出成功后在SD卡目录下会生成Ubuntu20.04.5LTS_Firefly_ext4_202303141457.img文件，如下图。

可以看到整个SD卡使用的空间total:2.9G, 而导出的根文件系统 Ubuntu20.04.5LTS_Firefly_ext4_202303141457.img的大小占用了7.8G的空间，在linux SDK中编译时放根文件系统的分区大小只有3G左右，这么大的映像是无法使用的。

压缩文件系统，删除不必要的空白空间以减少存储器资源的占用：

# 有部分客户说导出的 rootfs 大小为 3.3G，可实际只用了 3G，原因是没有对 rootfs 进行压缩

e2fsck -p -f Firefly_Ubuntu_18.04.6_rootfs.img

resize2fs -M Firefly_Ubuntu_18.04.6_rootfs.img

使用上面2条命令只能把img从8G变成7.9G，依然无法解决问题。

以上操作参考：1. 用户和密码 — Firefly Wiki (t-firefly.com)。

4. 减少根文件系统映像文件大小

上面导出的根文件系统的工作已经完成，可以把导出的根文件系统放到另外一台x86的ubuntu系统上面做进一步的文件大小变小的工作了。

由于根文件系统需要的实际大小为2.9G，因此创建一个3G大小的映像文件，取名为rootfs.img，可以使用dd命令来创建。把创建的img文件和原来的Ubuntu20.04.5LTS_Firefly_ext4_202303141457.img使用mount命令挂载到rootfs, img两个文件夹下面，使用cp命令从img文件夹中复制所有文件到rootfs文件夹下面，到此就完成了img文件减小的工作。具体操作流程如下

#使用dd命令来创建一个img映像文件，实际是一个磁盘分区,同时设置读入/输出的块大小为1M bytes个字节bs=1M, count=3072,即3G空间img文件
eiota@eiota-Default-string:~/icore-3568jq/ubuntu_rootfs$ sudo dd if=/dev/zero of=./rootfs20.04.5.img bs=1M count=3072
3072+0 records in
3072+0 records out
3221225472 bytes (3.2 GB, 3.0 GiB) copied, 10.0385 s, 321 MB/s
eiota@eiota-Default-string:~/icore-3568jq/ubuntu_rootfs$ ls -l
total 24591952
-rw-r--r-- 1 eiota eiota 8456601600 3月  14 12:40 rk356x_ubuntu_rootfs.img
-rw-r--r-- 1 root  root  3221225472 3月  14 16:26 rootfs20.04.5.img
-rw-rw-r-- 1 eiota eiota  369150429 12月 12 17:58 ubuntu_18.04_RK3568_ext4_v2.10-42-g50c7f0ac_20220120-1924_DESKTOP.7z
-rw-r--r-- 1 eiota eiota 2225065984 1月  21  2022 ubuntu_18.04_RK3568_ext4_v2.10-42-g50c7f0ac_20220120-1924_DESKTOP.img
-rw-r--r-- 1 eiota eiota 8456601600 3月  14 16:21 Ubuntu20.04.5LTS_Firefly_ext4_202303141110.img
-rw-r--r-- 1 eiota eiota 2453487616 10月 20 17:10 Ubuntu20.04-Lxqt_RK3568_v2.11-110_20220920.img#对刚刚创建的rootfs20.04.5.img格式化成ext4文件系统
eiota@eiota-Default-string:~/icore-3568jq/ubuntu_rootfs$ sudo mkfs.ext4 ./rootfs20.04.5.img
mke2fs 1.44.1 (24-Mar-2018)
Discarding device blocks: done
Creating filesystem with 786432 4k blocks and 196608 inodes
Filesystem UUID: 587fa640-1412-4a4a-b6d2-7c7ea86cf04f
Superblock backups stored on blocks:32768, 98304, 163840, 229376, 294912Allocating group tables: done
Writing inode tables: done
Creating journal (16384 blocks): done
Writing superblocks and filesystem accounting information: done#创建一个rootfs的文件夹，用于挂载rootfs20.04.5.img文件
eiota@eiota-Default-string:~/icore-3568jq/ubuntu_rootfs$ mkdir /home/eiota/rootfs
#挂载rootfs20.04.5.img文件到rootfs文件夹下面
eiota@eiota-Default-string:~/icore-3568jq/ubuntu_rootfs$ sudo mount -o loop rootfs20.04.5.img /home/eiota/rootfs/eiota@eiota-Default-string:~/icore-3568jq/ubuntu_rootfs$ ls /home/eiota/rootfs/ -lh
total 16K
drwx------ 2 root root 16K 3月  14 16:27 lost+foundeiota@eiota-Default-string:~/icore-3568jq/ubuntu_rootfs$ ls -l
total 24591952
-rw-r--r-- 1 eiota eiota 8456601600 3月  14 12:40 rk356x_ubuntu_rootfs.img
-rw-r--r-- 1 root  root  3221225472 3月  14 16:26 rootfs20.04.5.img
-rw-rw-r-- 1 eiota eiota  369150429 12月 12 17:58 ubuntu_18.04_RK3568_ext4_v2.10-42-g50c7f0ac_20220120-1924_DESKTOP.7z
-rw-r--r-- 1 eiota eiota 2225065984 1月  21  2022 ubuntu_18.04_RK3568_ext4_v2.10-42-g50c7f0ac_20220120-1924_DESKTOP.img
-rw-r--r-- 1 eiota eiota 8456601600 3月  14 16:21 Ubuntu20.04.5LTS_Firefly_ext4_202303141110.img
-rw-r--r-- 1 eiota eiota 2453487616 10月 20 17:10 Ubuntu20.04-Lxqt_RK3568_v2.11-110_20220920.img#把Ubuntu20.04.5LTS_Firefly_ext4_202303141110挂载到img文件夹下面
sudo mount -o loop Ubuntu20.04.5LTS_Firefly_ext4_202303141110.img /home/eiota/img/eiota@eiota-Default-string:~/img$ ls -l
total 84
lrwxrwxrwx   1 root root     7 2月   1  2021 bin -> usr/bin
drwxr-xr-x   2 root root  4096 3月  14 11:09 dev
drwxr-xr-x 111 root root  4096 3月  14 09:31 etc
drwxr-xr-x   3 root root  4096 3月  14 11:16 home
lrwxrwxrwx   1 root root     7 6月  24  2021 lib -> usr/lib
drwx------   2 root root 16384 9月  20 19:01 lost+found
drwxr-xr-x   3 root root  4096 3月  14 11:16 media
drwxr-xr-x   2 root root  4096 3月  14 11:16 mnt
drwxr-xr-x   2 root root  4096 3月  14 11:16 opt
dr-xr-xr-x   2 root root  4096 3月  14 11:16 proc
drwx------   3 root root  4096 3月  14 11:16 root
drwxr-xr-x   2 root root  4096 3月  14 11:16 run
lrwxrwxrwx   1 root root     8 2月   1  2021 sbin -> usr/sbin
drwxr-xr-x   2 root root  4096 12月 30 14:15 snap
drwxr-xr-x   2 root root  4096 2月   1  2021 srv
dr-xr-xr-x   2 root root  4096 8月   4  2017 sys
drwxr-xr-x   4 root root  4096 3月  14 11:16 system
drwxrwxrwt   7 root root  4096 3月  14 11:16 tmp
drwxr-xr-x  11 root root  4096 3月  14 11:16 usr
drwxr-xr-x  14 root root  4096 3月  14 11:16 var
drwxr-xr-x   3 root root  4096 3月  14 11:16 vendor#cp命令使用说明：-a：此选项通常在复制目录时使用，它保留链接、文件属性，并复制目录下的所有内容。其作用等于dpR参数组合。-d：复制时保留链接。这里所说的链接相当于Windows系统中的快捷方式。-f：覆盖已经存在的目标文件而不给出提示。-i：与-f选项相反，在覆盖目标文件之前给出提示，要求用户确认是否覆盖，回答"y"时目标文件将被覆盖。-p：除复制文件的内容外，还把修改时间和访问权限也复制到新文件中。-r：若给出的源文件是一个目录文件，此时将复制该目录下所有的子目录和文件。-l：不复制文件，只是生成链接文件。
#注意这里一定要使用-a来复制，否则减小后的根文件系统不能启动
eiota@eiota-Default-string:~/img$ sudo cp -a * ../rootfs/在新创建的img文件中已经写入了根文件系
eiota@eiota-Default-string:~/rootfs$ ls -l
total 84
lrwxrwxrwx   1 root root     7 2月   1  2021 bin -> usr/bin
drwxr-xr-x   2 root root  4096 3月  14 11:09 dev
drwxr-xr-x 111 root root  4096 3月  14 09:31 etc
drwxr-xr-x   3 root root  4096 3月  14 11:16 home
lrwxrwxrwx   1 root root     7 6月  24  2021 lib -> usr/lib
drwx------   2 root root 16384 9月  20 19:01 lost+found
drwxr-xr-x   3 root root  4096 3月  14 11:16 media
drwxr-xr-x   2 root root  4096 3月  14 11:16 mnt
drwxr-xr-x   2 root root  4096 3月  14 11:16 opt
dr-xr-xr-x   2 root root  4096 3月  14 11:16 proc
drwx------   3 root root  4096 3月  14 11:16 root
drwxr-xr-x   2 root root  4096 3月  14 11:16 run
lrwxrwxrwx   1 root root     8 2月   1  2021 sbin -> usr/sbin
drwxr-xr-x   2 root root  4096 12月 30 14:15 snap
drwxr-xr-x   2 root root  4096 2月   1  2021 srv
dr-xr-xr-x   2 root root  4096 8月   4  2017 sys
drwxr-xr-x   4 root root  4096 3月  14 11:16 system
drwxrwxrwt   7 root root  4096 3月  14 11:16 tmp
drwxr-xr-x  11 root root  4096 3月  14 11:16 usr
drwxr-xr-x  14 root root  4096 3月  14 11:16 var
drwxr-xr-x   3 root root  4096 3月  14 11:16 vendor#卸载2个img文件
eiota@eiota-Default-string:~$ sudo umount rootfs
eiota@eiota-Default-string:~$ sudo umount img

5. 编译生成整个烧写的映像文件

上面的操作是生成了ubuntu的根文件系统，要生成整个烧写映像文件，需要在RK3568 SDK目录下执行全部编译操作，这个操作会打包uboot, kernel, 根文件系统，芯片内部引层程序等。如下图操作。

把上面生成的rootfs20.04.5.img重命名为rk356x_ubuntu_rootfs.img,用于SDK编译生时调用
eiota@eiota-Default-string:~/icore-3568jq/ubuntu_rootfs$ ls -l
total 10794340
-rw-r--r-- 1 eiota eiota 3094016000 3月  14 17:51 rk356x_ubuntu_rootfs.img
-rw-rw-r-- 1 eiota eiota  369150429 12月 12 17:58 ubuntu_18.04_RK3568_ext4_v2.10-42-g50c7f0ac_20220120-1924_DESKTOP.7z
-rw-r--r-- 1 eiota eiota 2225065984 1月  21  2022 ubuntu_18.04_RK3568_ext4_v2.10-42-g50c7f0ac_20220120-1924_DESKTOP.img
-rw-r--r-- 1 eiota eiota 3094016000 3月  14 18:10 Ubuntu20.04.5LTS_Firefly_ext4_202303141457.img
-rw-r--r-- 1 eiota eiota 2453487616 3月  14 17:52 Ubuntu20.04-Lxqt_RK3568_v2.11-110_20220920.img

#
root@eiota-Default-string:~/icore-3568jq# ./build.sh
processing option: allff
============================================
TARGET_ARCH=arm64
TARGET_PLATFORM=rk356x
TARGET_UBOOT_CONFIG=firefly-rk3568
TARGET_SPL_CONFIG=
TARGET_KERNEL_CONFIG=firefly_linux_defconfig
TARGET_KERNEL_DTS=rk3568-UEJR-004-mipi
TARGET_TOOLCHAIN_CONFIG=
TARGET_BUILDROOT_CONFIG=
TARGET_RECOVERY_CONFIG=
TARGET_PCBA_CONFIG=
TARGET_RAMBOOT_CONFIG=
============================================
============Start building uboot============
TARGET_UBOOT_CONFIG=firefly-rk3568
=========================================
## make firefly-rk3568_defconfig -j8
#
# configuration written to .config
#
scripts/kconfig/conf  --silentoldconfig KconfigCHK     include/config.hGEN     include/autoconf.mk.depCFG     tpl/u-boot.cfgCFG     u-boot.cfgCFG     spl/u-boot.cfgGEN     include/autoconf.mkGEN     tpl/include/autoconf.mkGEN     spl/include/autoconf.mkCHK     include/config/uboot.releaseCHK     include/generated/timestamp_autogenerated.hUPD     include/generated/timestamp_autogenerated.hCHK     include/config.hCFG     u-boot.cfgCHK     include/generated/version_autogenerated.hCHK     include/generated/asm-offsets.hCHK     include/generated/generic-asm-offsets.hHOSTCC  tools/mkenvimage.oHOSTCC  tools/fit_image.oHOSTCC  tools/image-host.oHOSTCC  tools/dumpimage.oHOSTCC  tools/rockchip/boot_merger.oHOSTCC  tools/mkimage.oHOSTCC  tools/rockchip/loaderimage.oHOSTLD  tools/mkenvimageHOSTLD  tools/loaderimageHOSTLD  tools/dumpimageHOSTLD  tools/mkimageHOSTLD  tools/boot_mergerCC      arch/arm/cpu/armv8/fwcall.oLD      arch/arm/cpu/armv8/built-in.oCC      common/main.oCC      cmd/version.oLD      cmd/built-in.oLD      common/built-in.oCC      drivers/usb/gadget/f_fastboot.oCC      lib/display_options.oLD      drivers/usb/gadget/built-in.oLD      lib/built-in.oLD      u-bootOBJCOPY u-boot.srecOBJCOPY u-boot-nodtb.binSYM     u-boot.sym
start=$(/home/eiota/icore-3568jq/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-nm u-boot | grep __rel_dyn_start | cut -f 1 -d ' '); end=$(/home/eiota/icore-3568jq/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-nm u-boot | grep __rel_dyn_end | cut -f 1 -d ' '); tools/relocate-rela u-boot-nodtb.bin 0x00a00000 $start $end
make[2]: 'arch/arm/dts/rk3568-firefly.dtb' is up to date.COPY    u-boot.dtbCAT     u-boot-dtb.binMKIMAGE u-boot.imgMKIMAGE u-boot-dtb.imgCOPY    u-boot.binALIGN   u-boot.binCC      spl/common/spl/spl.oCC      spl/arch/arm/cpu/armv8/fwcall.oCC      tpl/arch/arm/mach-rockchip/tpl.oCOPY    spl/u-boot-spl.dtbLD      spl/arch/arm/cpu/armv8/built-in.oLD      spl/common/spl/built-in.oCC      tpl/arch/arm/cpu/armv8/fwcall.oLD      tpl/arch/arm/mach-rockchip/built-in.oLD      tpl/arch/arm/cpu/armv8/built-in.oCC      spl/lib/display_options.oLD      spl/lib/built-in.oLD      tpl/u-boot-tplOBJCOPY tpl/u-boot-tpl-nodtb.binCOPY    tpl/u-boot-tpl.binLD      spl/u-boot-splOBJCOPY spl/u-boot-spl-nodtb.binCAT     spl/u-boot-spl-dtb.binCOPY    spl/u-boot-spl.binCFGCHK  u-boot.cfg
SEC=1
pack u-boot.itb okay! Input: /home/eiota/icore-3568jq/rkbin/RKTRUST/RK3568TRUST.iniFIT description: FIT Image with ATF/OP-TEE/U-Boot/MCU
Created:         Wed Mar 15 10:08:58 2023Image 0 (uboot)Description:  U-BootCreated:      Wed Mar 15 10:08:58 2023Type:         Standalone ProgramCompression:  uncompressedData Size:    1243872 Bytes = 1214.72 KiB = 1.19 MiBArchitecture: AArch64Load Address: 0x00a00000Entry Point:  unavailableHash algo:    sha256Hash value:   86a81609918caa751fcdae33683bf4f5adc61434160e17bb95fbf66f2abc93b7Image 1 (atf-1)Description:  ARM Trusted FirmwareCreated:      Wed Mar 15 10:08:58 2023Type:         FirmwareCompression:  uncompressedData Size:    163840 Bytes = 160.00 KiB = 0.16 MiBArchitecture: AArch64Load Address: 0x00040000Hash algo:    sha256Hash value:   6204b6f381d2ad6175ffa52cc82abe8c934eb23aaf8a00c7db2dda0367449fdcImage 2 (atf-2)Description:  ARM Trusted FirmwareCreated:      Wed Mar 15 10:08:58 2023Type:         FirmwareCompression:  uncompressedData Size:    40960 Bytes = 40.00 KiB = 0.04 MiBArchitecture: AArch64Load Address: 0xfdcc1000Hash algo:    sha256Hash value:   5563d929dab73f22d2229dd7933b58de3dd6553334fc653502e97b1bd561365fImage 3 (atf-3)Description:  ARM Trusted FirmwareCreated:      Wed Mar 15 10:08:58 2023Type:         FirmwareCompression:  uncompressedData Size:    20267 Bytes = 19.79 KiB = 0.02 MiBArchitecture: AArch64Load Address: 0x0006a000Hash algo:    sha256Hash value:   b04372ab0f84e300cccc8281c5ecfe73111b211f223491be16d2a5d7e1587c7cImage 4 (atf-4)Description:  ARM Trusted FirmwareCreated:      Wed Mar 15 10:08:58 2023Type:         FirmwareCompression:  uncompressedData Size:    8192 Bytes = 8.00 KiB = 0.01 MiBArchitecture: AArch64Load Address: 0xfdcd0000Hash algo:    sha256Hash value:   b46eaa95b8be8ee3e8e1cacf59ac20c8ea85e4f61c4441cc85d520750274003fImage 5 (atf-5)Description:  ARM Trusted FirmwareCreated:      Wed Mar 15 10:08:58 2023Type:         FirmwareCompression:  uncompressedData Size:    8192 Bytes = 8.00 KiB = 0.01 MiBArchitecture: AArch64Load Address: 0xfdcce000Hash algo:    sha256Hash value:   2f8839c8032a60fdcad5abdd39b5d7d0cdb937a946b009a2c674e9d6304f10e6Image 6 (atf-6)Description:  ARM Trusted FirmwareCreated:      Wed Mar 15 10:08:58 2023Type:         FirmwareCompression:  uncompressedData Size:    7732 Bytes = 7.55 KiB = 0.01 MiBArchitecture: AArch64Load Address: 0x00068000Hash algo:    sha256Hash value:   6e9d32ba2391ea86ec585080eebb4c76fae7b5363dca1a69e6035ba3e4491bc8Image 7 (optee)Description:  OP-TEECreated:      Wed Mar 15 10:08:58 2023Type:         FirmwareCompression:  uncompressedData Size:    457112 Bytes = 446.40 KiB = 0.44 MiBArchitecture: AArch64Load Address: 0x08400000Hash algo:    sha256Hash value:   66bbd173528d12e9739c336926e33ee1ac1f4c7078fcac5712eeb8747d02163eImage 8 (fdt)Description:  U-Boot dtbCreated:      Wed Mar 15 10:08:58 2023Type:         Flat Device TreeCompression:  uncompressedData Size:    15719 Bytes = 15.35 KiB = 0.01 MiBArchitecture: AArch64Hash algo:    sha256Hash value:   bf758d1c80fd4a1a2fbebd3277ddb5bf40e4fe4dff6f4e9d35b2939dccc2c8fdDefault Configuration: 'conf'Configuration 0 (conf)Description:  rk3568-fireflyKernel:       unavailableFirmware:     atf-1FDT:          fdtLoadables:    ubootatf-2atf-3atf-4atf-5atf-6optee
********boot_merger ver 1.2********
Info:Pack loader ok.
pack loader(SPL) okay! Input: /home/eiota/icore-3568jq/rkbin/RKBOOT/RK3568MINIALL.ini/home/eiota/icore-3568jq/u-boot
pack loader with new: spl/u-boot-spl.binImage(no-signed, version=0): uboot.img (FIT with uboot, trust...) is ready
Image(no-signed): rk356x_spl_loader_v1.13.112.bin (with spl, ddr...) is ready
pack uboot.img okay! Input: /home/eiota/icore-3568jq/rkbin/RKTRUST/RK3568TRUST.iniPlatform RK3568 is build OK, with new .config(make firefly-rk3568_defconfig -j8)
/home/eiota/icore-3568jq/prebuilts/gcc/linux-x86/aarch64/gcc-linaro-6.3.1-2017.05-x86_64_aarch64-linux-gnu/bin/aarch64-linux-gnu-
Wed Mar 15 10:08:58 CST 2023
Image Type:   Rockchip RK35 boot image
Init Data Size: 59392 bytes
Boot Data Size: 241664 bytes
Input:/home/eiota/icore-3568jq/rkbin/RKBOOT/RK3568MINIALL.ini/home/eiota/icore-3568jq/rkbin/bin/rk35/rk3568_ddr_1560MHz_v1.13.bin/home/eiota/icore-3568jq/rkbin/bin/rk35/rk356x_spl_v1.12.binPack rk3568 idblock.bin okay!Running build_uboot succeeded.
Skipping build_loader for missing configs:  RK_LOADER_BUILD_TARGET.
============Start building kernel============
TARGET_ARCH          =arm64
TARGET_KERNEL_CONFIG =firefly_linux_defconfig
TARGET_KERNEL_DTS    =rk3568-UEJR-004-mipi
TARGET_KERNEL_CONFIG_FRAGMENT =rk356x_linux.config
==========================================
/home/eiota/icore-3568jq
#
# configuration written to .config
#
Using .config as base
Merging ./arch/arm64/configs/rk356x_linux.config
Value of CONFIG_LEDS_TRIGGER_HEARTBEAT is redefined by fragment ./arch/arm64/configs/rk356x_linux.config:
Previous value: # CONFIG_LEDS_TRIGGER_HEARTBEAT is not set
New value: CONFIG_LEDS_TRIGGER_HEARTBEAT=yValue of CONFIG_USB_SERIAL_CH341 is redefined by fragment ./arch/arm64/configs/rk356x_linux.config:
Previous value: # CONFIG_USB_SERIAL_CH341 is not set
New value: CONFIG_USB_SERIAL_CH341=yValue of CONFIG_MOTORCOMM_PHY is redefined by fragment ./arch/arm64/configs/rk356x_linux.config:
Previous value: # CONFIG_MOTORCOMM_PHY is not set
New value: CONFIG_MOTORCOMM_PHY=yValue of CONFIG_VIDEO_VM149C is redefined by fragment ./arch/arm64/configs/rk356x_linux.config:
Previous value: # CONFIG_VIDEO_VM149C is not set
New value: CONFIG_VIDEO_VM149C=y#
# merged configuration written to .config (needs make)
#
scripts/kconfig/conf  --oldconfig Kconfig
#
# configuration written to .config
#
scripts/kconfig/conf  --syncconfig KconfigCALL    scripts/checksyscalls.shCHK     include/generated/compile.hGZIP    kernel/config_data.gzImage:  kernel.img is readyCALL    scripts/checksyscalls.shBuilding modules, stage 2.MODPOST 455 modules
found ./arch/arm64/boot/dts/rockchip/.rk3568-UEJR-004-mipi.dtb.dts.tmp
found ./arch/arm64/boot/dts/rockchip/.rk3568-UEJR-004-mipi.dtb.dts.tmp
found ./arch/arm64/boot/dts/rockchip/.rk3568-UEJR-004-mipi.dtb.dts.tmp
found ./arch/arm64/boot/dts/rockchip/.rk3568-UEJR-004-mipi.dtb.dts.tmp
found ./arch/arm64/boot/dts/rockchip/.rk3568-UEJR-004-mipi.dtb.dts.tmp
found ./arch/arm64/boot/dts/rockchip/.rk3568-UEJR-004-mipi.dtb.dts.tmp
found ./arch/arm64/boot/dts/rockchip/.rk3568-UEJR-004-mipi.dtb.dts.tmpImage:  resource.img (with rk3568-UEJR-004-mipi.dtb logo.bmp logo_kernel.bmp) is readyImage:  boot.img (with Image ramdisk.img resource.img) is readyImage:  zboot.img (with Image.lz4 ramdisk.img resource.img) is readyGenerate extLinuxBoot image startINSTALL arch/arm64/crypto/chacha-neon.koINSTALL arch/arm64/crypto/poly1305-neon.koINSTALL crypto/xor.koINSTALL drivers/md/dm-bio-prison.ko
...INSTALL net/xfrm/xfrm_user.koDEPMOD  4.19.232
Running build_extboot succeeded.
Skipping build_toolchain for missing configs:  RK_CFG_TOOLCHAIN.
Skipping build_buildroot for missing configs:  RK_CFG_BUILDROOT.
buildroot/output//images/rootfs.ext4 not generated?
Running build_rootfs succeeded.
==========Start building recovery==========
TARGET_RECOVERY_CONFIG=
========================================
config is
use prebuilt rk356x-recovery-arm64.cpio.gz for CPIO image
found kernel image
pack recovery.img...fdt {
kernel {
ramdisk {
resource {
FIT description: U-Boot FIT source file for arm
Created:         Wed Mar 15 10:09:42 2023Image 0 (fdt)Description:  unavailableCreated:      Wed Mar 15 10:09:42 2023Type:         Flat Device TreeCompression:  uncompressedData Size:    138801 Bytes = 135.55 KiB = 0.13 MiBArchitecture: AArch64Load Address: 0xffffff00Hash algo:    sha256Hash value:   d34058503ee772fba2aa20cef2d788cefac74f816f9112f222caa3c872a87257Image 1 (kernel)Description:  unavailableCreated:      Wed Mar 15 10:09:42 2023Type:         Kernel ImageCompression:  uncompressedData Size:    24686600 Bytes = 24108.01 KiB = 23.54 MiBArchitecture: AArch64OS:           LinuxLoad Address: 0xffffff01Entry Point:  0xffffff01Hash algo:    sha256Hash value:   90f3d004810533c72626b6d73a2e1ec841015fac19734275a05f2cc5c5b70306Image 2 (ramdisk)Description:  unavailableCreated:      Wed Mar 15 10:09:42 2023Type:         RAMDisk ImageCompression:  uncompressedData Size:    8629789 Bytes = 8427.53 KiB = 8.23 MiBArchitecture: AArch64OS:           LinuxLoad Address: 0xffffff02Entry Point:  unavailableHash algo:    sha256Hash value:   afa9465ba81dd6c9dcf5c6ebab3a799108cf5a04f002ae2b75b1dcffa7814861Image 3 (resource)Description:  unavailableCreated:      Wed Mar 15 10:09:42 2023Type:         Multi-File ImageCompression:  uncompressedData Size:    397312 Bytes = 388.00 KiB = 0.38 MiBHash algo:    sha256Hash value:   9c5153fd1d719a7ff1351450857e622a6a0584eb0cb95b85b143fc2225088881Default Configuration: 'conf'Configuration 0 (conf)Description:  unavailableKernel:       kernelInit Ramdisk: ramdiskFDT:          fdt
done.
you take 0:01.62 to build recovery
====Build recovery ok!====
Running build_recovery succeeded.
Skipping build_ramboot for missing configs:  RK_CFG_RAMBOOT.
Running build_all succeeded.
/usr/bin/fakerootSource buildroot/build/envsetup.sh Linking parameter.txt from /home/eiota/icore-3568jq/device/rockchip/rk356x/parameter-ubuntu-fit.txt... Done linking parameter.txt Linking uboot.img from /home/eiota/icore-3568jq/u-boot/uboot.img... Done linking uboot.img Linking MiniLoaderAll.bin from /home/eiota/icore-3568jq/u-boot/rk356x_spl_loader_v1.13.112.bin... Done linking MiniLoaderAll.bin Linking boot.img from /home/eiota/icore-3568jq/kernel/extboot.img... Done linking boot.img Linking misc.img from /home/eiota/icore-3568jq/device/rockchip/rockimg/misc.img... Fallback to /home/eiota/icore-3568jq/device/rockchip/rockimg/wipe_all-misc.img Done linking misc.img Linking rootfs.img from /home/eiota/icore-3568jq/ubuntu_rootfs/rk356x_ubuntu_rootfs.img... Done linking rootfs.img Images in /home/eiota/icore-3568jq/rockdev are ready!
Make image ok!
File name is  UEJR-004-MIPI_Rk356x_v1.3.0b_230315.img
Rename the file? [N|y]Make update.img
start to make update.img...
Resize rootfs partition size
dumpe2fs 1.44.1 (24-Mar-2018)
Android Firmware Package Tool v2.0
------ PACKAGE ------
Add file: ./package-file
package-file,Add file: ./package-file done,offset=0x800,size=0x11a,userspace=0x1
Add file: ./Image/MiniLoaderAll.bin
bootloader,Add file: ./Image/MiniLoaderAll.bin done,offset=0x1000,size=0x689c0,userspace=0xd2
Add file: ./Image/parameter.txt
parameter,Add file: ./Image/parameter.txt done,offset=0x6a000,size=0x1de,userspace=0x1
Add file: ./Image/uboot.img
uboot,Add file: ./Image/uboot.img done,offset=0x6a800,size=0x400000,userspace=0x800
Add file: ./Image/misc.img
misc,Add file: ./Image/misc.img done,offset=0x46a800,size=0xc000,userspace=0x18
Add file: ./Image/boot.img
boot,Add file: ./Image/boot.img done,offset=0x476800,size=0x8000000,userspace=0x10000
Add file: ./Image/recovery.img
recovery,Add file: ./Image/recovery.img done,offset=0x8476800,size=0x2049e00,userspace=0x4094
Add file: ./Image/rootfs.img
rootfs,Add file: ./Image/rootfs.img done,offset=0xa4c0800,size=0xb86af000,userspace=0x170d5e
Add CRC...
Make firmware OK!
------ OK ------
********rkImageMaker ver 2.0********
Generating new image, please wait...
Writing head info...
Writing boot file...
Writing firmware...
Generating MD5 data...
MD5 data generated successfully!
New image generated successfully!
Making ./Image/update.img OK.
Make update image ok!/home/eiota/icore-3568jq/rockdev/pack/UEJR-004-MIPI_Rk356x_v1.3.0b_230315.img
Running build_updateimg succeeded.

上面成功编译完成在/home/eiota/icore-3568jq/rockdev/pack/ 下生成了可用于烧写的全部映像文件UEJR-004-MIPI_Rk356x_v1.3.0b_230315.img，之后使用专用工具RKDevTool来烧写就可以了。

下一篇：机器视觉OpenCVSharp4入门教程②-OpenCVSharp加载图片

RK3568打包导出根文件系统rootfs

根文件系统

2. img文件

3. 导出根文件系统rootfs

4. 减少根文件系统映像文件大小

5. 编译生成整个烧写的映像文件

相关内容

热门资讯
