目录

一、依赖管理

二、服务模块管理 api、svc

三、其他文件管理

1、私密配置文件

2、前端页面单页文件

四、单体仓库 mono-repo

1、单体仓库和多仓库的对比：

2、单体仓库优点

五、接口参数校验

六、统一异常处理

七、DTO(数据传输对象)和DMO(数据模型对象)

八、强类型接口设计

1、特点：接口规划、编译器自动类型检查、自动代码生成。但是客户端和服务端耦合性大

2、Spring Feign

一、依赖管理

JavaSpring项目使用Maven管理所有微服务先继承实现父模块依赖，根据自己模块业务再附加依赖。common-lib公共共享模块，服务开发封装类。

二、服务模块管理 api、svc

每个服务由两个模块组成，接口模块和服务模块，例如account-aip、account-svc，一般api接口模块上传到maven仓库进行管理，api为强类型客户端，其他服务调用相关服务的api即可。

三、其他文件管理

1、私密配置文件

除了服务外还有config目录进行对私密文件的存储，使用spring的本地私密配置方式，config里面的私密控制不会被监听到版本控制。

2、前端页面单页文件

四、单体仓库 mono-repo

1、单体仓库和多仓库的对比：

2、单体仓库优点

• 易于规范代码风格
• 易于集成和部署，配合构建工具可以一键部署
• 易于理解，方便开发人员把握整体建构
• 易于复用，可以抽取公共功能，进行重构

五、接口参数校验

spring有成套且成熟的校验注解，开发成员只需要填写注释。开发人员也可以根据自己的业务校验规则定义注解，实现ConstraintValidator，重写校验规则即可。

例如：

六、统一异常处理

package xyz.staffjoy.common.error;import com.github.structlog4j.ILogger;
import com.github.structlog4j.SLoggerFactory;
import org.hibernate.validator.internal.engine.path.PathImpl;
import org.springframework.http.converter.HttpMessageNotReadableException;
import org.springframework.validation.BindException;
import org.springframework.validation.BindingResult;
import org.springframework.validation.FieldError;
import org.springframework.web.HttpMediaTypeNotSupportedException;
import org.springframework.web.HttpRequestMethodNotSupportedException;
import org.springframework.web.bind.MethodArgumentNotValidException;
import org.springframework.web.bind.MissingServletRequestParameterException;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.method.annotation.MethodArgumentTypeMismatchException;
import org.springframework.web.servlet.NoHandlerFoundException;
import xyz.staffjoy.common.api.BaseResponse;
import xyz.staffjoy.common.api.ResultCode;
import xyz.staffjoy.common.auth.PermissionDeniedException;import javax.validation.ConstraintViolation;
import javax.validation.ConstraintViolationException;
import java.util.Set;@RestControllerAdvice
public class GlobalExceptionTranslator {static final ILogger logger = SLoggerFactory.getLogger(GlobalExceptionTranslator.class);@ExceptionHandler(MissingServletRequestParameterException.class)public BaseResponse handleError(MissingServletRequestParameterException e) {logger.warn("Missing Request Parameter", e);String message = String.format("Missing Request Parameter: %s", e.getParameterName());return BaseResponse.builder().code(ResultCode.PARAM_MISS).message(message).build();}@ExceptionHandler(MethodArgumentTypeMismatchException.class)public BaseResponse handleError(MethodArgumentTypeMismatchException e) {logger.warn("Method Argument Type Mismatch", e);String message = String.format("Method Argument Type Mismatch: %s", e.getName());return BaseResponse.builder().code(ResultCode.PARAM_TYPE_ERROR).message(message).build();}@ExceptionHandler(MethodArgumentNotValidException.class)public BaseResponse handleError(MethodArgumentNotValidException e) {logger.warn("Method Argument Not Valid", e);BindingResult result = e.getBindingResult();FieldError error = result.getFieldError();String message = String.format("%s:%s", error.getField(), error.getDefaultMessage());return BaseResponse.builder().code(ResultCode.PARAM_VALID_ERROR).message(message).build();}@ExceptionHandler(BindException.class)public BaseResponse handleError(BindException e) {logger.warn("Bind Exception", e);FieldError error = e.getFieldError();String message = String.format("%s:%s", error.getField(), error.getDefaultMessage());return BaseResponse.builder().code(ResultCode.PARAM_BIND_ERROR).message(message).build();}@ExceptionHandler(ConstraintViolationException.class)public BaseResponse handleError(ConstraintViolationException e) {logger.warn("Constraint Violation", e);Set> violations = e.getConstraintViolations();ConstraintViolation violation = violations.iterator().next();String path = ((PathImpl) violation.getPropertyPath()).getLeafNode().getName();String message = String.format("%s:%s", path, violation.getMessage());return BaseResponse.builder().code(ResultCode.PARAM_VALID_ERROR).message(message).build();}@ExceptionHandler(NoHandlerFoundException.class)public BaseResponse handleError(NoHandlerFoundException e) {logger.error("404 Not Found", e);return BaseResponse.builder().code(ResultCode.NOT_FOUND).message(e.getMessage()).build();}@ExceptionHandler(HttpMessageNotReadableException.class)public BaseResponse handleError(HttpMessageNotReadableException e) {logger.error("Message Not Readable", e);return BaseResponse.builder().code(ResultCode.MSG_NOT_READABLE).message(e.getMessage()).build();}@ExceptionHandler(HttpRequestMethodNotSupportedException.class)public BaseResponse handleError(HttpRequestMethodNotSupportedException e) {logger.error("Request Method Not Supported", e);return BaseResponse.builder().code(ResultCode.METHOD_NOT_SUPPORTED).message(e.getMessage()).build();}@ExceptionHandler(HttpMediaTypeNotSupportedException.class)public BaseResponse handleError(HttpMediaTypeNotSupportedException e) {logger.error("Media Type Not Supported", e);return BaseResponse.builder().code(ResultCode.MEDIA_TYPE_NOT_SUPPORTED).message(e.getMessage()).build();}@ExceptionHandler(ServiceException.class)public BaseResponse handleError(ServiceException e) {logger.error("Service Exception", e);return BaseResponse.builder().code(e.getResultCode()).message(e.getMessage()).build();}@ExceptionHandler(PermissionDeniedException.class)public BaseResponse handleError(PermissionDeniedException e) {logger.error("Permission Denied", e);return BaseResponse.builder().code(e.getResultCode()).message(e.getMessage()).build();}@ExceptionHandler(Throwable.class)public BaseResponse handleError(Throwable e) {logger.error("Internal Server Error", e);return BaseResponse.builder().code(ResultCode.INTERNAL_SERVER_ERROR).message(e.getMessage()).build();}
}

package xyz.staffjoy.common.error;import lombok.Getter;
import xyz.staffjoy.common.api.ResultCode;/*** Business Service Exception** @author william*/
public class ServiceException extends RuntimeException {private static final long serialVersionUID = 2359767895161832954L;@Getterprivate final ResultCode resultCode;public ServiceException(String message) {super(message);this.resultCode = ResultCode.FAILURE;}public ServiceException(ResultCode resultCode) {super(resultCode.getMsg());this.resultCode = resultCode;}public ServiceException(ResultCode resultCode, String msg) {super(msg);this.resultCode = resultCode;}public ServiceException(ResultCode resultCode, Throwable cause) {super(cause);this.resultCode = resultCode;}public ServiceException(String msg, Throwable cause) {super(msg, cause);this.resultCode = ResultCode.FAILURE;}/*** for better performance** @return Throwable*/@Overridepublic Throwable fillInStackTrace() {return this;}public Throwable doFillInStackTrace() {return super.fillInStackTrace();}
}

七、DTO(数据传输对象)和DMO(数据模型对象)

dto与dmo互转：

转换工具地址：https://github.com/modelmapper/modelmapper

modelmap使用详情：https://blog.csdn.net/m0_54797663/article/details/115277264

八、强类型接口设计

1、特点：接口规划、编译器自动类型检查、自动代码生成。但是客户端和服务端耦合性大

通过Spring Feign结合强、若类型的结合，既能达到强类型接口的规范性又能达到弱类型接口的解耦性。

2、Spring Feign

注意：返回类型如果根据泛型进行包装的，springfeign是无法解析的，因为编译之后的泛型会被擦除！

九、环境隔离

public class EnvConstant {public static final String ENV_DEV = "dev";public static final String ENV_TEST = "test";public static final String ENV_UAT = "uat"; // similar to stagingpublic static final String ENV_PROD = "prod";
}

package xyz.staffjoy.common.env;import lombok.*;import java.util.HashMap;
import java.util.Map;// environment related configuration
@Data
@Builder
public class EnvConfig {private String name;private boolean debug;private String externalApex;private String internalApex;private String scheme;@Getter(AccessLevel.NONE)@Setter(AccessLevel.NONE)private static Map map;static {map = new HashMap();EnvConfig envConfig = EnvConfig.builder().name(EnvConstant.ENV_DEV).debug(true).externalApex("staffjoy-v2.local").internalApex(EnvConstant.ENV_DEV).scheme("http").build();map.put(EnvConstant.ENV_DEV, envConfig);envConfig = EnvConfig.builder().name(EnvConstant.ENV_TEST).debug(true).externalApex("staffjoy-v2.local").internalApex(EnvConstant.ENV_DEV).scheme("http").build();map.put(EnvConstant.ENV_TEST, envConfig);// for aliyun k8s demo, enable debug and use http and staffjoy-uat.local// in real world, disable debug and use http and staffjoy-uat.xyz in UAT environmentenvConfig = EnvConfig.builder().name(EnvConstant.ENV_UAT).debug(true).externalApex("staffjoy-uat.local").internalApex(EnvConstant.ENV_UAT).scheme("http").build();map.put(EnvConstant.ENV_UAT, envConfig);//        envConfig = EnvConfig.builder().name(EnvConstant.ENV_UAT)
//                .debug(false)
//                .externalApex("staffjoy-uat.xyz")
//                .internalApex(EnvConstant.ENV_UAT)
//                .scheme("https")
//                .build();
//        map.put(EnvConstant.ENV_UAT, envConfig);envConfig = EnvConfig.builder().name(EnvConstant.ENV_PROD).debug(false).externalApex("staffjoy.com").internalApex(EnvConstant.ENV_PROD).scheme("https").build();map.put(EnvConstant.ENV_PROD, envConfig);}public static EnvConfig getEnvConfg(String env) {EnvConfig envConfig = map.get(env);if (envConfig == null) {envConfig = map.get(EnvConstant.ENV_DEV);}return envConfig;}
}

十、异步调用处理

配置异步线程池：

package xyz.staffjoy.account.config;import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Import;
import org.springframework.scheduling.annotation.EnableAsync;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import xyz.staffjoy.common.async.ContextCopyingDecorator;
import xyz.staffjoy.common.config.StaffjoyRestConfig;import java.util.concurrent.Executor;@Configuration
@EnableAsync
@Import(value = {StaffjoyRestConfig.class})
@SuppressWarnings(value = "Duplicates")
public class AppConfig {public static final String ASYNC_EXECUTOR_NAME = "asyncExecutor";@Bean(name=ASYNC_EXECUTOR_NAME)public Executor asyncExecutor() {ThreadPoolTaskExecutor executor = new ThreadPoolTaskExecutor();// for passing in request scope contextexecutor.setTaskDecorator(new ContextCopyingDecorator());executor.setCorePoolSize(3);executor.setMaxPoolSize(5);executor.setQueueCapacity(100);executor.setWaitForTasksToCompleteOnShutdown(true);executor.setThreadNamePrefix("AsyncThread-");executor.initialize();return executor;}@Beanpublic PasswordEncoder passwordEncoder() {return new BCryptPasswordEncoder();}}

注意：调用方与被调用方不能在同一个bean中。

十二、集成Swagger文档

SpringBoot引入swagger依赖

io.springfoxspringfox-swagger2io.springfoxspringfox-swagger-ui

package xyz.staffjoy.account.config;import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;@Configuration
@EnableSwagger2
public class SwaggerConfig {@Beanpublic Docket api() {return new Docket(DocumentationType.SWAGGER_2).select().apis(RequestHandlerSelectors.basePackage("xyz.staffjoy.account.controller")).paths(PathSelectors.any()).build().apiInfo(apiEndPointsInfo()).useDefaultResponseMessages(false);}private ApiInfo apiEndPointsInfo() {return new ApiInfoBuilder().title("Account REST API").description("Staffjoy Account REST API").contact(new Contact("bobo", "https://github.com/jskillcloud", "bobo@jskillcloud.com")).license("The MIT License").licenseUrl("https://opensource.org/licenses/MIT").version("V2").build();}
}

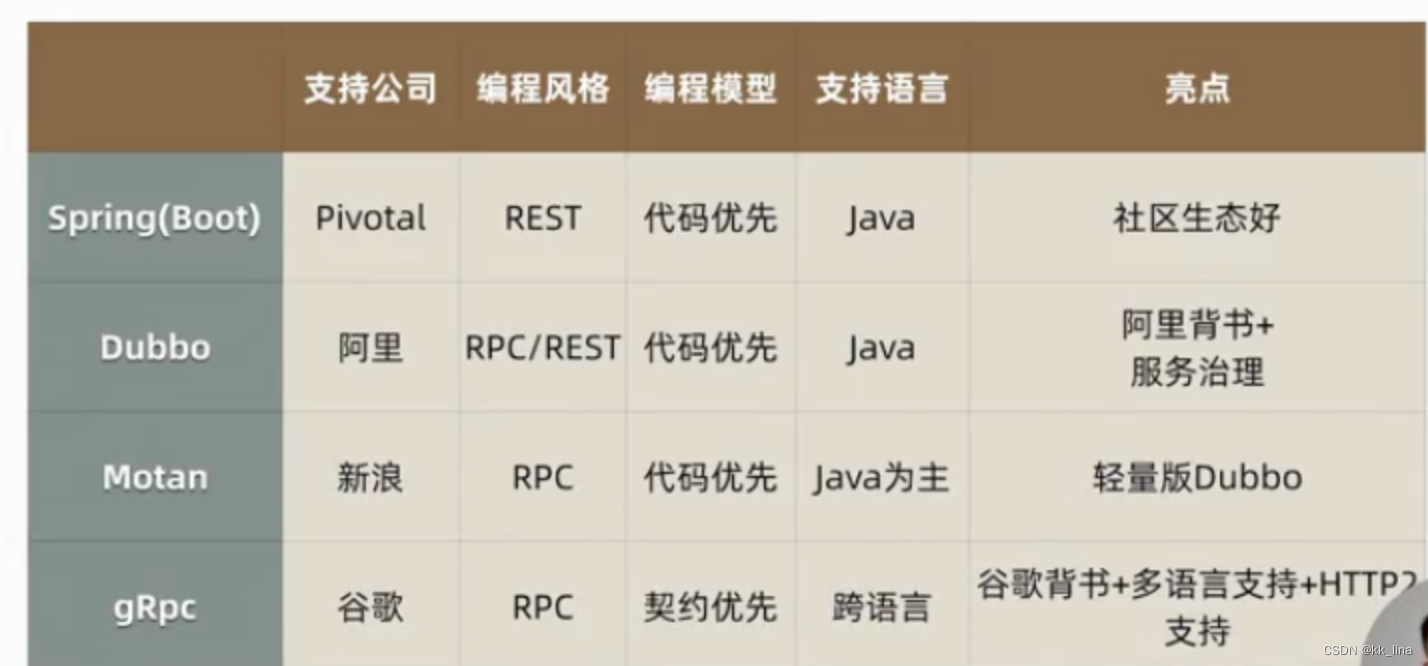

 十三、常用框架和比对
